- Speed control between 500 – 1600 SPM (strokes per minute) for cutting soft and hard woods, plastic, soft metals
- Large die-cast aluminum work table (16-9/32-in x 10-in), tilts up to 45° for bevel cutting
- Uses standard 5-in long pinned and plain end scroll saw blades
- Adjustable air blower can be positioned to keep cutting line free of sawdust
- Powerful 1.2 amp ball bearing variable speed motor for cutting different materials
- 1-1/4-in dust extraction port for connecting to shop vacuum hose (not included)

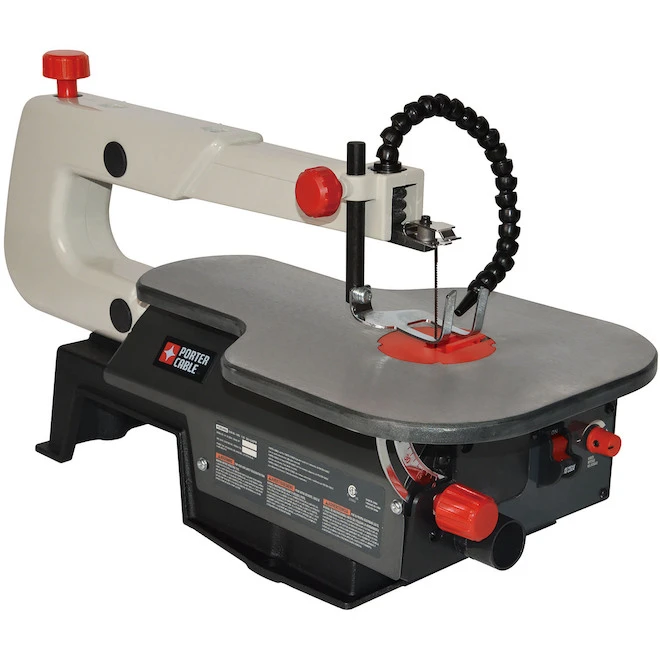

Porter-Cable 16-in 1.2-Amps Variable Speed Scroll Saw
$227.00 Original price was: $227.00.$99.99Current price is: $99.99.
- Quality and Affordability Combined
- Green products, guaranteed.
- Prompt service, every time.
- The Quality Choice for Smart Shoppers

Get creative with your projects using the Porter Cable model PCXB340SS variable speed scroll saw. Using standard 5-in long scroll saw blades, this saw is ideal for making curved cuts for puzzles, furniture and crafts. It has a speed control between 500 – 1600 SPM (strokes per minute) for cutting soft and hard woods, plastic, soft metals. The large worktable is made of die-cast aluminum and tilts up to 45° for bevel cutting. Its air blower is adjustable and can be positioned to keep cutting line free of sawdust. It also features a 1-1/4-in dust extraction port for connecting to shop vacuum hose (not included).
| Adjustable Shoe | Yes |
|---|---|
| Safety Listing | cCSAus safety listing |
| Maximum Depth of 90 Degree Cut(in) | 2 |
| Maximum Depth of 90 Degree Cut(mm) | 50.8 |
| Maximum Metal Cutting Capacity(cm) | 0.635 |
| Maximum Metal Cutting Capacity(in) | 0.25 |
| Maximum Metal Cutting Capacity(mm) | 6.35 |
| Maximum Throat Width/Depth(cm) | 40.64 |
| Maximum Throat Width/Depth(in) | 16 |
| Maximum Throat Width/Depth(mm) | 406.4 |
| Maximum Wood Cutting Capacity(cm) | 5.08 |
| Maximum Wood Cutting Capacity(in) | 2 |
| Maximum Wood Cutting Capacity(mm) | 50.8 |
| Package Contents | Saw, Hex Wrenches (2), 5 in Blades (2), Blade Adaptors (2) |
| Speed Range High (SPM) | 1600 |
| Maximum Depth of 45 Degree Cut(mm) | 31.75 |
| Speed Range Low (SPM) | 550 |
| Stroke Length(cm) | 1.905 |
| Stroke Length(in) | 0.75 |
| Stroke Length(mm) | 19.05 |
| Table Tilt Range Left(deg) | 0 |
| Table Tilt Range Right(deg) | 45 |
| Variable Speed | Yes |
| Warranty | 3-year limited |
| Weight(kg) | 10.47816 |
| Weight(lbs.) | 23.1 |
| Width(cm) | 27.94 |
| Width(in) | 11 |
| Maximum Depth of 90 Degree Cut(cm) | 5.08 |
| Maximum Depth of 45 Degree Cut(in) | 1.25 |
| Amperage | 1.2 |
| Dust Chute Diameter(OD)(cm) | 3.175 |
| Blade Included | Yes |
| Blade Type | Pin and straight |
| Built-In Light | No |
| Chuck Key Storage | Yes |
| Chuck Type | Keyed |
| Color/Finish Family | Black |
| Cordless | No |
| Depth(cm) | 62.865 |
| Depth(in) | 24.75 |
| Depth(mm) | 628.65 |
| Dust Blower | Yes |
| Dust Chute | Yes |
| Dust Chute Diameter(OD)(in) | 1.25 |
| Maximum Depth of 45 Degree Cut(cm) | 3.175 |
| Dust Chute Diameter(OD)(mm) | 31.75 |
| Dust Collection | Yes |
| File/Certification Number | 226002 |
| Guide(s) | Blade Guides Included |
| Height(cm) | 35.56 |
| Height(in) | 14 |
| Height(mm) | 355.6 |
| Hold Down Foot Included | Yes |
| Item Disclaimer | In-use/lifestyle images-Wood not included |
| Keyed/Keyless | Keyed |
| Length(cm) | 62.865 |
| Length(in) | 24.75 |
| Length(mm) | 628.65 |
| Width(mm) | 279.4 |
